DS-3E1326P-E

Name: REPAIRAZ MMC
Address: Qurban Abbasov 29, Bakı, AZ
Telephone: +994773394100

0,00 ₼

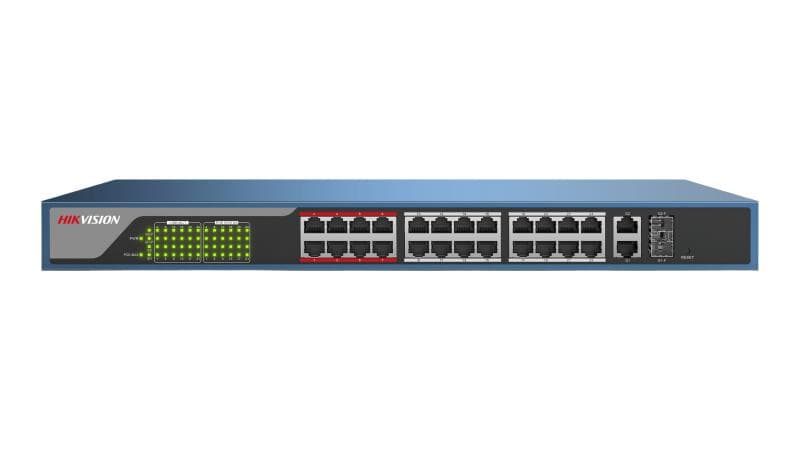

Layer 2 network switch designed for video data transmission
24 x 10/100 Mbps PoE ports and 2 x 10/100/1000 Mbps combo uplink ports
Web management: supports intelligent management such as VLAN, link aggregation, QoS, loop guard via STP, SNMP, etc. to reduce project difficulty and time, save costs and protect customer investment
IEEE 802.3 af & at high PoE power supply
Maximum 250 m long distance PoE transmission
VIP port transmission priority
Safe and reliable using 4 KV high surge protection.

Low stock

Network Media	Ethernet: UTP/STP of CAT3 or above,Fast Ethernet: UTP/STP of CAT5 or above,Gigabit Ethernet: Recommended UTP/STP of CAT5e or CAT6,1000 Base-SX: MMF (Multi-Mode Fiber),1000 Base-LX: MMF (Multi-Mode Fiber) or SMF (Single Mode Fiber)
Lightning-proof Ranking	Port: 4 KV,Power supply: 6KV
Data Transfer Rate	Ethernet: 10 Mbps (half-duplex)/20 Mbps (full-duplex),Fast Ethernet: 100 Mbps (half-duplex)/200 Mbps (full-duplex),Gigabit Ethernet: 2000 Mbps (full-duplex)

Operating Temperature	0 ºC to +40 ºC (+32 ºF to +104 ºF)
Storage Temperature	-40 ºC to +70 ºC (-40 ºF to +158 ºF)
Power Supply	100 to 240 VAC, 50/60Hz
Operating Humidity	10% to 90% (Relative Humidity, without condensation)
Power Consumption	≤440W

Switch Max. Power	370W
Port Max. Power	30W
PoE Standard	IEEE 802.3af, IEEE802.3at
PoE Port	Port 1 to 24
PoE Cable Core	Supports 8-core power supply and simultaneous power supply via the 1236 and 4578 line order.
Port max. Power	30W
Switch max. Power	370W

Network Standard

IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3af, IEEE802.3at, IEEE 802.3x, IEEE802.3z

Storage Humidity

5% to 90% (Relative Humidity, without condensation)
