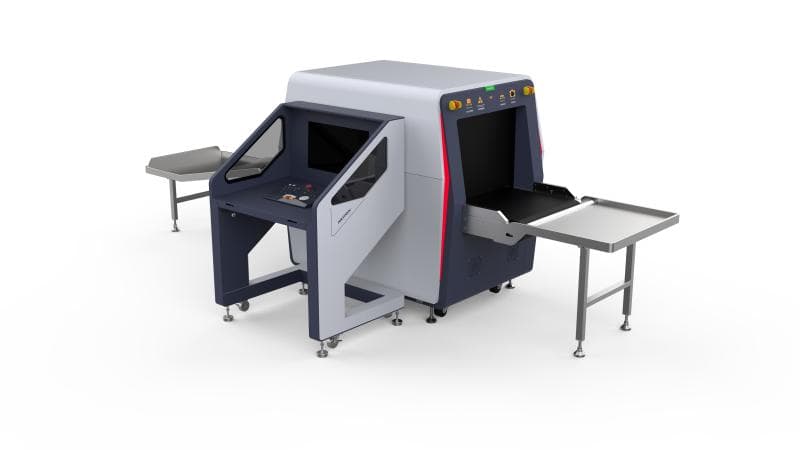

ISD-SC6550S-4CVL

0,00 ₼

Raytina new generation image enhancement engine, using advanced intelligent image imaging algorithm, signal-to-noise ratio optimization obvious imaging more delicate, image clearer, more prominent details.
Advanced material properties identification technology can effectively identify the equivalent of atomic number of item(such as metal and organics) and give a different color
Intelligent recognition technology is a deep learning recognition algorithm with full independent intellectual property rights, which realizes the integration of intelligent recognition algorithm and X-ray imaging software, and achieves better recognition effect
The radiation leakage dose rate is far lower than the relevant international standards
The conveyor speed can be adjusted according to the field efficiency to meet the different needs of high efficiency and energy saving
Double lead curtain design effectively reduce the radiation lead shade place
Supports access to Hik-central, and implement the data upload
Support security check machine video, picture, alarm information local and network storage, view,playback
Event tracing can organically combine X-ray image with passenger video information to realize human package tracing
Supports login with Password and fingerprint authentication,energy saving light barrier sensor, operation training system
Brand new appearance and exquisite manufacturing technology, high standard quality control give products high reliability and long life

Az qalıb

Power Supply	220 VAC/110 VAC (-10% to +15%), 50 Hz /60 Hz(±3 Hz)
Working Temperature	0 °C to 40 ° C (41 °F to 104 °F)
Working Humidity	0% to 90%
Dimension (W × H × D)	Main engine appearance dimensions:2127 mm × 989 mm × 1351mm (L x W x H) Single display professional operation Desk Size:850mmx 700mm x 1200mm (L x W x H)

Tunnel Size

660mm Wx505 mm H

Max. load	150 kg (330.69 lb)
Conveyor speed	0.2m/s, 0.3m/s, 0.4m/s adjustable

Penetration

30mm standard,36 mm typical

40+mm by customize

Wire resolution

38AWG standard, 40AWG typical

Spatial resolution

Vertical: 1.0 mm (0.04")

Horizontal: 1.0 mm (0.04)

Power Consumption

0.8 kw

X-ray dose per inspection	< 5 μGy
X-ray leakage	< 1 μGy/h

X-ray generator

Anode Voltage: 160KV

100% Oil Cooling, Single generator, vertical beam direction.
