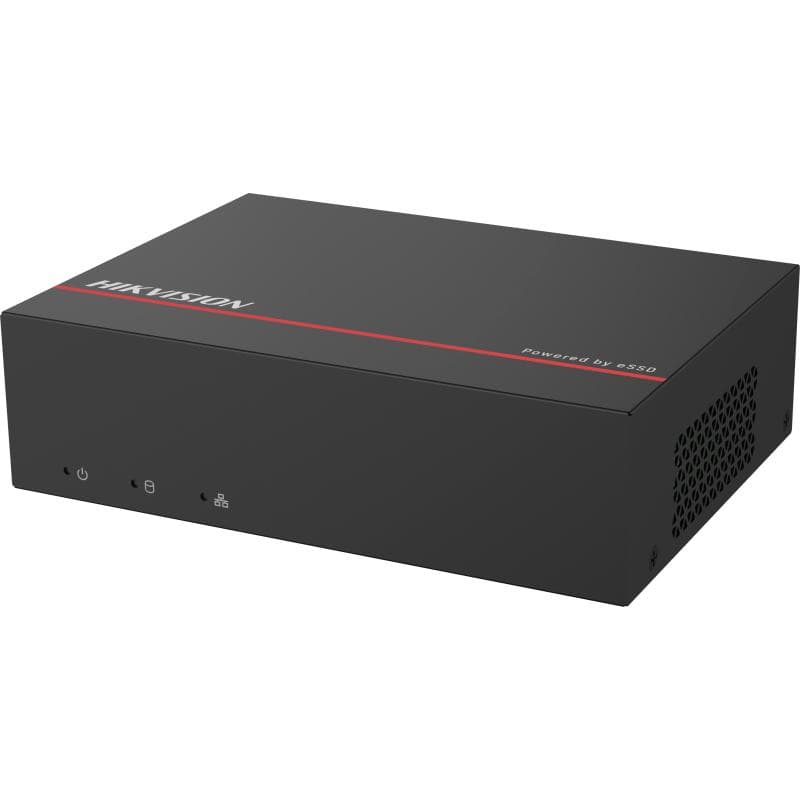

iDS-E04HQHI

Built-in 512 GB eSSD (480 GB available)

Note:

M-SATA interface, capable of plugging and upgrading capacity.

The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

72 Mbps

Incoming bandwidth: 4 Mbps

When 1080p Lite mode is not enabled:

3K Lite/5 MP Lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K Lite/5 MP Lite/4 MP Lite/1080p Lite/720p/VGA/WD1/4CIF/CIF

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K Lite@12 fps; 4 MP Lite/1080p@15 fps;

720p/WD1/4CIF/VGA/CIF@20 fps

For 5 MP stream access: 5 MP Lite@12fps; 4 MP Lite/1080p@15 fps;

720p/WD1/4CIF/VGA/CIF@20 fps

For 4 MP stream access: 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps

(P)/30 fps (N)

For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps

(N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

When 1080p Lite mode enabled:

3K Lite/5 MP Lite@12fps; 4 MP Lite@15 fps; 1080p Lite/720p

Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Video, Video & Audio

Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

1-ch

Up to 6 MP resolution

Support H.265+/H.265 IP cameras

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
